H48H船用截止止回阀
分享到:
H48H船用截止止回阀
品牌: 上海京功
型号: 船用截止止回阀
材质: 球墨铸铁,碳钢,不锈钢
规格: DN15-DN500
咨询电话: 13386246719
产品详情

H48H船用截止止回阀

H48H船用截止止回阀按GB12235标准设计制造,结构合理、密封可靠、性能优良。截止止回多用阀具有截止阀和止回阀双重功能,属于一种多用阀,当阀门开启时阀瓣沿着提升起的阀杆做升降运动,可作为止回阀用,当阀门关闭时阀杆压紧阀瓣起到截止阀的作用。

H48H船用截止止回阀产品说明

H48H船用截止止回阀按GB12235标准设计制造,结构合理、密封可靠、性能优良。截止止回多用阀具有截止阀和止回阀双重功能,属于一种多用阀,当阀门开启时阀瓣沿着提升起的阀杆做升降运动,可作为止回阀用,当阀门关闭时阀杆压紧阀瓣起到截止阀的作用。阀瓣、阀座密封面堆焊铁基合金或司太立钴基硬质合金,截止止回多用阀具有耐磨、耐高温、耐腐蚀、抗擦伤性能好、使用寿命长的特点。截止止回多用阀可适用于船舶、石油、化工、制药、电力行业等各种工况的水平安装管路上。

H48H船用截止止回阀性能规范 Technical Data

公称压力 Nominal Pressure(MPa)公称通径 Nominal Diameter(am)适用介质 Applicable Medium
0.615~150海水、淡水、滑油、燃油和 t≤300℃蒸汽 Sea water, Fresh water, Lubricanting oil, Fuel oil, t≤250℃ steam.
1.065~150
1.665~150
2.515~125

H48H船用截止止回阀主要零部件材质 Materials of Main Parts

零件名称 Parts Name材料 Material
名称 Name牌号 Marks
阀体、阀盖、阀盘 Body/Cover/Disc铸钢或铸锡青铜ZG230-450、ZCuSn10Zn2、 ZCuSn5Pb5Zn5
阀杆 Stem不锈钢或铝青铜2Cr13、CuA19Mn2

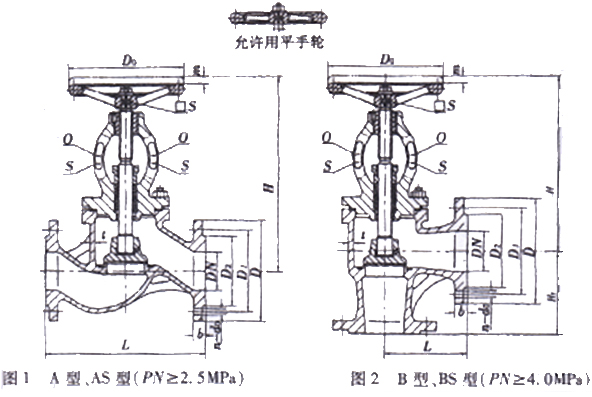

H48H船用截止止回阀外形结构图

H48H船用截止止回阀A型、B型主要外形尺寸

公称 压力 PN (MPa)公称 通径 DN (mm)结构尺寸
Structure Dimension
壁厚 Thickness法兰 Flange螺栓
Bolt
手轮
Hand wheel
升程
Lift Range m
参考重量 Weight(kg)
LH≈H1
A型B型A型B型B型DD1D2d0bn个ThDoSA型B型
1.065290115309275115615512310415146M14140121714.612.6
80310125345298125617013811815148M14160142018.917.1
100350150374325135619015813815148M14180142528.123.2
1254001754263721557215183164151410M14200173238.035.2
1504801804874151607240208190151412M14200173855.847.9
1.61254001754654051557225187168171710M16250223253.345.1
1504801805244571608255217196171912M16280243862.658.3
2.5201507521720375595684813124M1280874.64.4
2516080217203805105735613134M1280875.15.O
3218085236216855115836415136M14100996.36.3
4020090260236905125937415146M1412011118.57.7
50230952882589561351038415146M14140121410.910.3
65290115334301115717013211017178M16160141717.915.9
80310125362321125718514712617198M16200172025.423.5
1003501504273781358205167146171910M16250222537.632.8
1254001754934331559240196172212110M20280243265.452.6

H48H船用截止止回阀AS型、BS型主要外形尺寸

公称 压力 PN (MPa)公称 通径 DN (mm)结构尺寸
Structure Dimension
壁厚 Thickness法兰 Flange螺栓
Bolt
手轮
Hand wheel
升程 Lift Range m参考重量 Weight(kg)
LH≈H1
AS型BS型AS型BS型BS型DD1D2d0bn个ThDoSAS型BS型
0.6151309021720390480554011124M1080873.93.8
201509521720395490655011124M1080874.44.3
251601002172031004100756011144M1080874.84.9
321801052362161055120907014154M12100996.76.5
4020011526023611551301008014164M12120111188.2
5023012528825812551401109014174M12140121411.512.5
65290145310275145616013011014174M12140121715.213.8
80310155345298155619015012818194M1616014202221.2
100350175374325175621017014818204M16180142532.127.8
125400200426366200724020017818208M16200173243.241.5
150480225487415225726522520218208M16200173863.157.8
1.665290145334301145618514512218174M16160141920.519.2
80310155366321155620016013318198M16200172028.327.2
100350175427378175622018015818208M16250222545.339.5
125400200465405200725021018418228M1625022325751.3
150480225524457225828524021222228M2028024386968.9
2.5151309021720390595654714124M1280875.35
2015095217203955105755814124M1280875.85.5
251601002172031005115856814144M1280876.16.4
3218010523621610551401007818154M16100998.68.4
4020011526023611551501108818164M16120111110.611.2
50230125288258125616512510218174M16140121414.214
65290145334301145718514512218178M16160141920.719.4
80310155362321155720016013318198M16200172028.527.4
100350175427378175823519015822208M20250222545 840
125400200493433200927022018426268M24280243275 561.6
